Product Code
|
UTS-1302A
|
Constant Head Permeability Cell, ASTM 80 mm dia. (nominal) with transparent plexy body
|
|
UTS-1303A
|
Constant Head Permeability Cell, ASTM 120 mm dia. (nominal) with transparent plexy body
|
|
UTS-1305A
|
Wall Type Metal Manometer Panel with Two Tubes
|
|
UTS-1306A
|
Sliding Tamper, ASTM,
for Constant Head Permeability Test
|
|
UTS-1309A
|
Constant-Head Filter Tank, 4 L.
(Supplied without sand)
|
|
UTS-1311A
|
Constant Head Permeability Cell, ASTM 63 mm (2.5”) dia. with metal body
|
|
UTS-1312A
|
Constant Head Permeability Cell,
ASTM 76 mm (3.0”) dia. with metal body
|
|
UTS-1313A
|
Constant Head Permeability Cell,
ASTM 114 mm (4.5”) dia. with metal body
|
|
UTS-1314A
|
Constant Head Permeability Cell,
ASTM 152 mm (6”) dia. with metal body
|
|
UTS-1315A
|
Constant Head Permeability Cell,
ASTM 229 mm(9”) dia. with metal body
|
|
UTGP-1140
|
Plastic Hose, Ø8 mm OD, 3 m
|
Standards
ASTM D 2434
Constant Head Permeability Cells are used to study the behaviour of soil, relatively coarse-grained soil such as sands and gravel, in its natural conditions with respect to water flow.
The cells have an transparent plexy or metal body with 2 pressure points at different level and aluminium base and head.

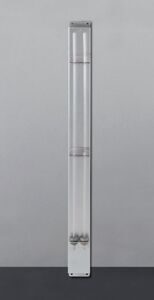

UTS-1305A Wall type metal manometer panel is fitted with 2 manometer tubes each being 1000 mm long. Each tube has its own valve.
UTS-1309A Constant-Head Filter Tank, made of transparent plexy, has separate valves for inlet, outlet and overflow. Supplied with metal carriying case for wall mounting.
The Manometers Panel, Sliding Tamper, UTS-1309A Constant-Head Filter Tank, Plastic Hose and The Equipment for De-Airing Water should be ordered separately.
The Constant Head Permeability Cells are supplied complete with;
UTS-1305A
|
Product Code
|
Dimensions
|
Weight (approx.)
|
|
UTS-1302A
|
140x220x420 mm
|
3.5 kg
|
|
UTS-1303A
|
180x250x640 mm
|
7 kg
|
|
UTS-1305A
|
150x40x1200 mm
|
4 kg
|
|
UTS-1306A
|
70x70x640 mm
|
2.2 kg
|
|
UTS-1309A
|
205x210x290 mm
|
2.6 kg
|
|
UTS-1311A
|
120x200x305 mm
|
2.4 kg
|
|
UTS-1312A
|
140x220x330 mm
|
3.2 kg
|
|
UTS-1313A
|
200x270x370 mm
|
5.1 kg
|
|
UTS-1314A
|
240x310x420 mm
|
9.1 kg
|
|
UTS-1315A
|
330x400x510 mm
|
21 kg
|
